High-throughput ORA with BSDB signatures

library(bugphyzzAnalyses)
library(bugphyzz)
library(bugsigdbr)
library(dplyr)
library(purrr)
library(tidyr)
library(ComplexHeatmap)
library(gridExtra)
library(ggplot2)

body_sites <- c(
    skin = "skin", vagina = "vagina", mouth = "mouth", feces = "feces"
)
ranks <- c(genus = "genus", species = "species")
directions <- c(increased = "increased", decreased = "decreased")

Introduction

This document aims at running a high-throughput over-representation analysis (ORA) to discover bugphyzz signatures enriched in BugSigDB sets and meta-signatures.

A few backgrounds will be used for the enrichment analysis: 1. TMS_BSDB. Union of all of the taxa in the TypicalMicrobiomeSignatures (TMS) dataset and BugSigDB. 2. TMS_BSDB_BS. Union of all taxa in the TMS dataset and BugSigDB by body site. 3. BSDB. Union of all taxa in BugSigDB. 4. BSDB_BS. Union of all taxa in BugSigDB by body site. 5. TMS_1BSDB_BS. Union of all of the taxa in the TMS dataset by body site plus a target BugSigDB signature. 6. TMS_BSDB_intersect. Intersection of all of the taxa in the TMS dataset and BugSigDB. 7. TMS_BSDB_BS_intersect. Intersection of all of the taxa in the TMS dataset and BugSigDB by body site.

ORA will be performed using a one-sided Fisher’s exact test and the odds ratio and CI will be calculated as well.

Data

Import TypicalMicrobiomeSignatures (TMS):

tms <- importTMS() |>
    filter(`Age group` == "adult")
glimpse(tms, 50)
#> Rows: 9,636
#> Columns: 6
#> $ `Age group`  <chr> "adult", "adult", "adult", …
#> $ Rank         <chr> "genus", "genus", "genus", …
#> $ `NCBI ID`    <int> 1912216, 1912216, 1912216, …
#> $ `Taxon name` <chr> "Cutibacterium", "Cutibacte…
#> $ `Body site`  <chr> "skin", "vagina", "mouth", …
#> $ Prevalence   <dbl> 0.9647577093, 0.0631578947,…

Import BugSigDB v1.2.1:

bsdb_doi <- "10.5281/zenodo.10627578" # v1.2.1
# bsdb_doi <-  "10.5281/zenodo.10407666" #v1.2.0
# bsdb_doi <-  "10.5281/zenodo.6468009" #v1.1.0
bsdb <- importBugSigDB(version = bsdb_doi)
bsdb <- bsdb |>
    filter(`Host species` == "Homo sapiens") |>
    filter(!is.na(`Abundance in Group 1`)) |>
    filter(!is.na(`Body site`)) |>
    filter(`Study design` == "case-control" ) |>
    filter(
        !grepl("(child|infant)", `Group 1 name`, ignore.case = TRUE)
    )
dim(bsdb)
#> [1] 1369   50

BugSigDB subsets by body site:

uberon <- getOntology(onto = "uberon")
bsdb_subsets_by_bodysite <- vector("list", length(body_sites))
names(bsdb_subsets_by_bodysite) <- body_sites
for (i in seq_along(bsdb_subsets_by_bodysite)) {
    if (body_sites[i] == "skin") {
        bsdb_subsets_by_bodysite[[i]] <- bsdb |>
            filter(grepl(body_sites[i], `Body site`, ignore.case = TRUE))
    } else {
        bsdb_subsets_by_bodysite[[i]] <- subsetByOntology(
            bsdb, column = "Body site", term = body_sites[i], ontology = uberon
        )
    }
}

Bugphyzz:

bp <- importBugphyzz()
names(bp)
#>  [1] "animal pathogen"
#>  [2] "antimicrobial sensitivity"
#>  [3] "biofilm formation"
#>  [4] "butyrate-producing bacteria"
#>  [5] "extreme environment"
#>  [6] "health associated"
#>  [7] "host-associated"
#>  [8] "hydrogen gas producing"
#>  [9] "lactate producing"
#> [10] "motility"
#> [11] "plant pathogenicity"
#> [12] "sphingolipid producing"
#> [13] "spore formation"
#> [14] "aerophilicity"
#> [15] "antimicrobial resistance"
#> [16] "arrangement"
#> [17] "biosafety level"
#> [18] "cogem pathogenicity rating"
#> [19] "disease association"
#> [20] "gram stain"
#> [21] "habitat"
#> [22] "hemolysis"
#> [23] "shape"
#> [24] "spore shape"
#> [25] "coding genes"
#> [26] "genome size"
#> [27] "growth temperature"
#> [28] "length"
#> [29] "mutation rate per site per generation"
#> [30] "mutation rate per site per year"
#> [31] "optimal ph"
#> [32] "width"

Signatures

Typical Microbiome Signatures:

thrs <- elbows()
tms_sigs <- vector("list", length(body_sites) * length(ranks))
counter <- 1
for (i in seq_along(body_sites)) {
    for (j in seq_along(ranks)) {
        tms_name <- paste0(body_sites[i], "_", ranks[j])
        names(tms_sigs)[counter] <- tms_name
        tms_sigs[[counter]] <- tms |>
            filter(`Body site` == body_sites[i], Rank == ranks[j]) |>
            filter(Prevalence >= thrs[tms_name]) |>
            pull(`NCBI ID`) |>
            unique()
        counter <- counter + 1
    }
}
tms_sigs_BS_gn <- tms_sigs[grep("genus", names(tms_sigs))]
tms_sigs_BS_sp <- tms_sigs[grep("species", names(tms_sigs))]
names(tms_sigs_BS_gn) <- sub("_genus", "", names(tms_sigs_BS_gn))
names(tms_sigs_BS_sp) <- sub("_species", "", names(tms_sigs_BS_sp))

print("Number of taxa")
#> [1] "Number of taxa"
list(
    tms_sigs_BS_gn = lengths(tms_sigs_BS_gn),
    tms_sigs_BS_sp = lengths(tms_sigs_BS_sp)
)
#> $tms_sigs_BS_gn
#>   skin vagina  mouth  feces
#>     69     57     86    111
#>
#> $tms_sigs_BS_sp
#>   skin vagina  mouth  feces
#>    146    107    295    264

BugSigDB signatures:

vec_len <- length(body_sites) * length(ranks) * length(directions)
bsdb_sigs <- vector("list", vec_len)
counter <- 1
for (i in seq_along(body_sites)) {
    for (j in seq_along(ranks)) {
        for (k in seq_along(directions)) {
            dat <- bsdb_subsets_by_bodysite[[i]] |>
                filter(`Abundance in Group 1` == directions[k])
            sigs <- getSignatures(
                df = dat,
                tax.id.type = "ncbi", tax.level = ranks[j],
                exact.tax.level = FALSE, min.size = 5
            ) |>
                discard(~ length(.x) < 5)
            if (!length(sigs)) {
                counter <- counter + 1
                next
            }
            bsdb_id <- sub(
                pattern = "^(bsdb:[0-9]+/[0-9]+/[0-9]+)_.*$",
                replacement = "\\1",
                x = names(sigs)
            )
            pos <- map_int(bsdb_id, ~ which(dat$`BSDB ID` == .x))
            new_sigs_names <- paste0(
                body_sites[i], "-%-%-", ranks[j], "-%-%-", directions[k],
                "-%-%-", tolower(dat$Condition[pos]), "-%-%-",
                names(sigs)
            )
            names(sigs) <- new_sigs_names
            bsdb_sigs[[counter]] <- sigs
            counter <- counter + 1
        }
    }
}
bsdb_sigs <- list_flatten(bsdb_sigs)
bsdb_sigs <- discard(bsdb_sigs, is.null)

bsdb_sigs_gn <- bsdb_sigs[grep("-%-%-genus-%-%-", names(bsdb_sigs))]
bsdb_sigs_sp <- bsdb_sigs[grep("-%-%-species-%-%-", names(bsdb_sigs))]

bsdb_sigs_BS_gn <- map(body_sites, ~ {
    re <- paste0("^", .x, "-%-%-")
    bsdb_sigs_gn[grep(re, names(bsdb_sigs_gn))]
})

bsdb_sigs_BS_sp <- map(body_sites, ~ {
    re <- paste0("^", .x, "-%-%-")
    bsdb_sigs_sp[grep(re, names(bsdb_sigs_sp))]
})

print("Number of signatures")
#> [1] "Number of signatures"
list(
    bsdb_sigs = length(bsdb_sigs),
    bsdb_sigs_gn = length(bsdb_sigs_gn),
    bsdb_sigs_sp =length(bsdb_sigs_sp),
    bsdb_sigs_BS_gn = lengths(bsdb_sigs_BS_gn),
    bsdb_sigs_BS_sp = lengths(bsdb_sigs_BS_sp)
)
#> $bsdb_sigs
#> [1] 491
#>
#> $bsdb_sigs_gn
#> [1] 354
#>
#> $bsdb_sigs_sp
#> [1] 137
#>
#> $bsdb_sigs_BS_gn
#>   skin vagina  mouth  feces
#>     13      4     56    281
#>
#> $bsdb_sigs_BS_sp
#>   skin vagina  mouth  feces
#>      7      1     30     99

bugphyzz signatures:

bp_sigs_gn <- map(bp, ~ {
    makeSignatures(
        dat = .x, tax_id_type = "NCBI_ID", tax_level = "genus", min_size = 5,
        evidence = c("exp", "igc", "nas", "tas", "tax", "asr")
    )
}) |>
    discard(is.null) |>
    list_flatten(name_spec = "{inner}") |>
    map(as.character)
names(bp_sigs_gn) <- paste0(names(bp_sigs_gn), "|genus")

bp_sigs_sp <- map(bp, ~ {
    makeSignatures(
        dat = .x, tax_id_type = "NCBI_ID", tax_level = "species", min_size = 5,
        evidence = c("exp", "igc", "nas", "tas", "tax", "asr")
    )
}) |>
    discard(is.null) |>
    list_flatten(name_spec = "{inner}") |>
    map(as.character)
names(bp_sigs_sp) <- paste0(names(bp_sigs_sp), "|species")
bp_sigs <- c(bp_sigs_gn, bp_sigs_sp)
length(bp_sigs)
#> [1] 169

Meta-signatures

Meta-signatures:

metasigs_gn_up <- map(bsdb_subsets_by_bodysite, ~ {
    getMetaSignatures(
        df = .x, column = "Condition", direction = "UP", tax.level = "genus",
        min.studies = 1, exact.tax.level = FALSE
    )
}) |>
    list_flatten(
        name_spec = "{outer}-%-%-genus-%-%-increased-%-%-{inner}"
    ) |>
    map(~ names(.x))
metasigs_gn_down <- map(bsdb_subsets_by_bodysite, ~ {
    getMetaSignatures(
        df = .x, column = "Condition", direction = "DOWN",
        tax.level = "genus", exact.tax.level = FALSE, min.studies = 1
    )
}) |>
    list_flatten(
        name_spec = "{outer}-%-%-genus-%-%-decreased-%-%-{inner}"
    ) |>
    map(~ names(.x))

metasigs_sp_up <- map(bsdb_subsets_by_bodysite, ~ {
    getMetaSignatures(
        df = .x, column = "Condition", direction = "UP",
        tax.level = "species", exact.tax.level = FALSE, min.studies = 1
    )
}) |>
    list_flatten(
        name_spec = "{outer}-%-%-species-%-%-increased-%-%-{inner}"
    ) |>
    map(~ names(.x))

metasigs_sp_down <- map(bsdb_subsets_by_bodysite, ~ {
    getMetaSignatures(
        df = .x, column = "Condition", direction = "DOWN",
        tax.level = "species", exact.tax.level = FALSE, min.studies = 1
    )
}) |>
    list_flatten(
        name_spec = "{outer}-%-%-species-%-%-decreased-%-%-{inner}"
    ) |>
    map(~ names(.x))
metasigs_gn <- c(metasigs_gn_up, metasigs_gn_down)
metasigs_sp <- c(metasigs_sp_up, metasigs_sp_down)

Meta-sigantures without intersection

removeRepeatedTaxa <- function(up, down) {
    x <- map(down, ~ tibble(down = paste0(.x, collapse = ";"))) |>
        bind_rows(.id = "name") |>
        separate(
            col = "name",
            into = c("body_site", "rank", "direction", "condition"),
            sep = "-%-%-"
        ) |>
        select(-direction) |>
        mutate(down = strsplit(down, ";"))

    y <- map(up, ~ tibble(up = paste0(.x, collapse = ";"))) |>
        bind_rows(.id = "name") |>
        separate(
            col = "name",
            into = c("body_site", "rank", "direction", "condition"),
            sep = "-%-%-"
        ) |>
        select(-direction) |>
        mutate(up = strsplit(up, ";"))

    z <- full_join(x, y)

    a <- z |>
        rowwise() |>
        mutate(intersect = list(intersect(up, down))) |>
        mutate(up_unique = list(setdiff(up, intersect))) |>
        mutate(down_unique = list(setdiff(down, intersect))) |>
        ungroup() |>
        select(-down, -up, -intersect)

    b <- a |>
        rowwise() |>
        filter(length(up_unique) > 0) |>
        mutate(name = paste0(
            body_site, "-%-%-", rank, "-%-%-increased-%-%-", condition
        )) |>
        ungroup() |>
        select(name, up_unique)

    c <- a |>
        rowwise() |>
        filter(length(down_unique) > 0) |>
        mutate(name = paste0(
            body_site, "-%-%-", rank, "-%-%-decreased-%-%-", condition
        )) |>
        ungroup() |>
        select(name, down_unique)

    output1 <- vector("list", nrow(b))
    for (i in seq_along(output1)) {
        output1[[i]] <- b |>
            slice(i) |>
            pull(up_unique) |>
            unlist()
        names(output1)[[i]] <- b |>
            slice(i) |>
            pull(name)
    }

    output2 <- vector("list", nrow(c))
    for (i in seq_along(output2)) {
        output2[[i]] <- c |>
            slice(i) |>
            pull(down_unique) |>
            unlist()
        names(output2)[[i]] <- c |>
            slice(i) |>
            pull(name)
    }

    list(up = output1, down = output2)
}

umetasigs_gn_list <- removeRepeatedTaxa(metasigs_gn_up, metasigs_gn_down)
umetasigs_gn <- umetasigs_gn_list |>
    list_flatten(name_spec = "{inner}")
umetasigs_gn_up <- umetasigs_gn_list$up
umetasigs_gn_down <- umetasigs_gn_list$down

umetasigs_sp_list <- removeRepeatedTaxa(metasigs_sp_up, metasigs_sp_down)
umetasigs_sp <- umetasigs_sp_list |>
    list_flatten(name_spec = "{inner}")
umetasigs_sp_up <- umetasigs_sp_list$up
umetasigs_sp_down <- umetasigs_sp_list$down

ORA with BSDB signatures

Define a function to format the enrichment results for signatures:

formatEnSigs <- function(l) {
    ## Name is short for: Format Enriched Signatures
    ## l is the output of microbeSetEnrichment
    l |>
        bind_rows(.id = "bsdb_sig") |>
        separate(
            col = "bsdb_sig",
            into = c("body_site", "rank", "direction", "condition", "bsdb_sig"),
            sep = "-%-%-", remove = TRUE
        ) |>
        mutate(condition = tolower(condition)) |>
        mutate_at(.vars = c("p_value", "fdr"), .funs = ~ round(.x, 3)) |>
        mutate_at(
            .vars = c("odds_ratio", "upper_ci", "lower_ci"),
            .funs = ~ round(.x, 2)
        ) |>
        mutate(sig_name = sub(
            "^bugphyzz:(.*)\\|(genus|species)$", "\\1", sig_name
        )) |>
        {\(y) set_names(y, sub("Set", "BSDB", colnames(y)))}()
}

Background: TMS_BSDB

Background: Union of all taxa in BSDB and TMS by rank

bk_TMS_BSDB_gn <- unique(c(
    unlist(tms_sigs_BS_gn),
    unlist(bsdb_sigs_BS_gn)
))
bk_TMS_BSDB_sp <- unique(c(
    unlist(tms_sigs_BS_sp),
    unlist(bsdb_sigs_BS_sp)
))

Enrichment at the genus level:

## TODO investigate warnings
system.time({
    en_TMS_BSDB_gn <- map(
        .x = bsdb_sigs_gn,
        .f = ~ microbeSetEnrichment(.x, bk_TMS_BSDB_gn, bp_sigs_gn)
    ) |>
        formatEnSigs()
})
#>    user  system elapsed
#>  82.065   0.031  82.100

Enrichment at the species level:

system.time({
    en_TMS_BSDB_sp <- map(
        .x = bsdb_sigs_sp,
        .f = ~ microbeSetEnrichment(.x, bk_TMS_BSDB_sp, bp_sigs_sp)
        ) |>
        formatEnSigs()
})
#>    user  system elapsed
#>  51.706   0.036  51.744

Combine results:

en_TMS_BSDB <- bind_rows(en_TMS_BSDB_gn, en_TMS_BSDB_sp)

Background: TMS_BSDB_BS

Backgrounds:

bk_TMS_BSDB_BS_gn <- map(body_sites, ~ {
    tms_taxa <- tms_sigs_BS_gn[[.x]]
    bsdb_taxa <- unlist(bsdb_sigs_BS_gn[[.x]])
    unique(c(tms_taxa, bsdb_taxa))
})

bk_TMS_BSDB_BS_sp <- map(body_sites, ~ {
    tms_taxa <- tms_sigs_BS_sp[[.x]]
    bsdb_taxa <- unlist(bsdb_sigs_BS_sp[[.x]])
    unique(c(tms_taxa, bsdb_taxa))
})

Enrichment at the genus level:

system.time({
    en_TMS_BSDB_BS_gn <- vector("list", length(body_sites))
    for (i in seq_along(body_sites)) {
        bk <- bk_TMS_BSDB_BS_gn[[body_sites[i]]]
        sigL <- bsdb_sigs_BS_gn[[body_sites[i]]]
        res <- map(sigL, ~ microbeSetEnrichment(.x, bk, bp_sigs_gn)) |>
            formatEnSigs()
        en_TMS_BSDB_BS_gn[[i]] <- res
    }
    en_TMS_BSDB_BS_gn <- bind_rows(en_TMS_BSDB_BS_gn)
})
#>    user  system elapsed
#>  80.097   0.020  80.121

Enrichment at the species level:

system.time({
    en_TMS_BSDB_BS_sp <- vector("list", length(body_sites))
    for (i in seq_along(body_sites)) {
        bk <- bk_TMS_BSDB_BS_sp[[body_sites[i]]]
        sigList <- bsdb_sigs_BS_sp[[body_sites[i]]]
        res <- map(sigList, ~ microbeSetEnrichment(.x, bk, bp_sigs_sp)) |>
            formatEnSigs()
        en_TMS_BSDB_BS_sp[[i]] <- res
    }
    en_TMS_BSDB_BS_sp <- bind_rows(en_TMS_BSDB_BS_sp)
})
#>    user  system elapsed
#>  49.123   0.020  49.146

Combine results:

en_TMS_BSDB_BS <- bind_rows(en_TMS_BSDB_BS_gn, en_TMS_BSDB_BS_sp)

Background: BSDB

BSDB: Union of all BSDB signatures by rank

bk_BSDB_gn <- unique(unlist(bsdb_sigs_gn))
bk_BSDB_sp <- unique(unlist(bsdb_sigs_sp))

ORA at the genus level:

system.time({
    en_BSDB_gn <- map(
        .x = bsdb_sigs_gn,
        .f = ~ microbeSetEnrichment(.x, bk_BSDB_gn, bp_sigs_gn)
    ) |>
        formatEnSigs()
})
#>    user  system elapsed
#>  80.881   0.044  80.931

ORA at the species level:

system.time({
    en_BSDB_sp <- map(
        .x = bsdb_sigs_sp,
        .f = ~ microbeSetEnrichment(.x, bk_BSDB_sp, bp_sigs_sp)
    ) |>
        formatEnSigs()
})
#>    user  system elapsed
#>  49.973   0.024  50.000

Combine results:

en_BSDB <- bind_rows(en_BSDB_gn, en_BSDB_sp)

Background: BSDB_BS

Union of all BSDB signatures by body site by rank.

Create backgrounds:

bk_BSDB_BS_gn <- map(bsdb_sigs_BS_gn, ~ unique(unlist(.x))) |>
    discard(is.null)

bk_BSDB_BS_sp <- map(bsdb_sigs_BS_sp, ~ unique(unlist(.x))) |>
    discard(is.null)

Enrichment at the genus level:

system.time({
    en_BSDB_BS_gn <- vector("list", length(body_sites))
    for (i in seq_along(body_sites)) {
        bk <- bk_BSDB_BS_gn[[body_sites[i]]]
        sigL <- bsdb_sigs_BS_gn[[body_sites[i]]]
        res <- map(sigL, ~ microbeSetEnrichment(.x, bk, bp_sigs_gn)) |>
            formatEnSigs()
        en_BSDB_BS_gn[[i]] <- res
    }
    en_BSDB_BS_gn <- bind_rows(en_BSDB_BS_gn)
})
#>    user  system elapsed
#>  80.292   0.036  80.331

Enrichment at the species level:

system.time({
    en_BSDB_BS_sp <- vector("list", length(body_sites))
    for (i in seq_along(body_sites)) {
        bk <- bk_BSDB_BS_sp[[body_sites[i]]]
        re <- paste0("^", body_sites[i], "-%-%-")
        sigL <- bsdb_sigs_sp[grep(re, names(bsdb_sigs_sp))]
        res <- map(sigL, ~ microbeSetEnrichment(.x, bk, bp_sigs_sp)) |>
            formatEnSigs()
        en_BSDB_BS_sp[[i]] <- res
    }
    en_BSDB_BS_sp <- bind_rows(en_BSDB_BS_sp)
})
#>    user  system elapsed
#>  48.228   0.016  48.246

Combine results

en_BSDB_BS <- bind_rows(en_BSDB_BS_gn, en_BSDB_BS_sp)

Background: TMS_1BSDB_BS

Background(s):

bk_TMS_1BSDB_BS <- vector("list", length(bsdb_sigs))
for (i in seq_along(bk_TMS_1BSDB_BS)) {
    sig_name <- names(bsdb_sigs)[i]
    names(bk_TMS_1BSDB_BS)[i] <- sig_name
    bodysite_name <- sub(
        "^(\\w+)-%-%-(species|genus)-%-%-.*$", "\\1", sig_name
    )
    rank_name <- sub(
        "^(\\w+)-%-%-(species|genus)-%-%-.*$", "\\2", sig_name
    )
    tms_sig_name <- paste0(bodysite_name, "_", rank_name)
    bk_TMS_1BSDB_BS[[i]] <- unique(
        c(as.character(bsdb_sigs[[i]]), as.character(tms_sigs[[tms_sig_name]]))
    )
}

Enrichment at the genus level:

system.time({
    bk_TMS_1BSDB_BS_gn <- bk_TMS_1BSDB_BS[names(bsdb_sigs_gn)]
    en_TMS_1BSDB_BS_gn <- map2(bsdb_sigs_gn, bk_TMS_1BSDB_BS_gn, ~ {
        microbeSetEnrichment(set = .x, reference = .y, sigs = bp_sigs_gn)
    }) |>
        formatEnSigs()
})
#>    user  system elapsed
#>  75.886   0.012  75.903

Enrichment at the species level:

system.time({
    bk_TMS_1BSDB_BS_sp <- bk_TMS_1BSDB_BS[names(bsdb_sigs_sp)]
    en_TMS_1BSDB_BS_sp <- map2(bsdb_sigs_sp, bk_TMS_1BSDB_BS_sp, ~ {
        microbeSetEnrichment(set = .x, reference = .y, sigs = bp_sigs_sp)
    }) |>
        formatEnSigs()
})
#>    user  system elapsed
#>  45.812   0.028  45.844

en_TMS_1BSDB_BS <- bind_rows(en_TMS_1BSDB_BS_gn, en_TMS_1BSDB_BS_sp)

Background: TMS_BSDB_intersect

Intersection at the genus level:

tms_gn_x = unique(unlist(tms_sigs_BS_gn))
bsdb_gn_y = unique(unlist(bsdb_sigs_BS_gn))
bk_TMS_BSDB_intersect_gn <- intersect(tms_gn_x, bsdb_gn_y)
data.frame(
    tms_genus_only = length(setdiff(tms_gn_x, bk_TMS_BSDB_intersect_gn)),
    bsdb_genus_only = length(setdiff(bsdb_gn_y, bk_TMS_BSDB_intersect_gn)),
    tms_bsdb_genus_intersect = length(bk_TMS_BSDB_intersect_gn)
) |>
    knitr::kable()

tms_genus_only	bsdb_genus_only	tms_bsdb_genus_intersect
33	316	174

Intersection at the species level:

tms_sp_x = unique(unlist(tms_sigs_BS_sp))
bsdb_sp_y = unique(unlist(bsdb_sigs_BS_sp))
bk_TMS_BSDB_intersect_sp <- intersect(tms_sp_x, bsdb_sp_y)
data.frame(
    tms_species_only = length(setdiff(tms_sp_x, bk_TMS_BSDB_intersect_sp)),
    bsdb_species_only = length(setdiff(bsdb_sp_y, bk_TMS_BSDB_intersect_sp)),
    tms_bsdb_species_intersect = length(bk_TMS_BSDB_intersect_sp)
) |>
    knitr::kable()

tms_species_only	bsdb_species_only	tms_bsdb_species_intersect
335	503	301

Enrichment at the genus level:

system.time({
    en_TMS_BSDB_intersect_gn <- map(
        bsdb_sigs_gn,
        ~ microbeSetEnrichment(.x, bk_TMS_BSDB_intersect_gn, bp_sigs_gn)
        ) |>
        formatEnSigs()
})
#>    user  system elapsed
#>  76.679   0.028  76.728

Enrichment at the species level:

system.time({
    en_TMS_BSDB_intersect_sp <- map(
        bsdb_sigs_sp,
        ~ microbeSetEnrichment(.x, bk_TMS_BSDB_intersect_sp, bp_sigs_sp)
        ) |>
        formatEnSigs()
})
#>    user  system elapsed
#>  45.945   0.024  45.976

Combine results

en_TMS_BSDB_intersect <- bind_rows(
    en_TMS_BSDB_intersect_gn, en_TMS_BSDB_intersect_sp
)

Background: TMS_BSDB_BS_intersect

Intersection by body site at the genus level:

l1 <- map(body_sites, ~ {
    x <- unique(unlist(bsdb_sigs_BS_gn[[.x]]))
    y <- tms_sigs_BS_gn[[.x]]
    xy <- intersect(x, y)
    x_ <- setdiff(x, xy)
    y_ <- setdiff(y, xy)
    list(
        bsdb_only = x_,
        tms_only = y_,
        both = xy
    )
})
bk_TMS_BSDB_BS_intersect_gn <- map(l1, ~ .x$both)
l1 |>
    map(~ as.data.frame(matrix(map_int(.x, length), nrow = 1))) |>
    bind_rows(.id = "body_site") |>
    set_names(c("body_site", "bsdb_genus_only", "tms_genus_only", "genus_both"))
#>   body_site bsdb_genus_only tms_genus_only genus_both
#> 1      skin              21             39         30
#> 2    vagina               9             42         15
#> 3     mouth              50             25         61
#> 4     feces             347             11        100

Intersection by body site at the species level:

l2 <- map(body_sites, ~ {
    x <- unique(unlist(bsdb_sigs_BS_sp[[.x]]))
    y <- tms_sigs_BS_sp[[.x]]
    xy <- intersect(x, y)
    x_ <- setdiff(x, xy)
    y_ <- setdiff(y, xy)
    list(
        bsdb_only = x_,
        tms_only = y_,
        both = xy
    )
})
bk_TMS_BSDB_BS_intersect_sp <- map(l2, ~ .x$both)
l2 |>
    map(~ as.data.frame(matrix(map_int(.x, length), nrow = 1))) |>
    bind_rows(.id = "body_site") |>
    set_names(
        c("body_site", "bsdb_species_only", "tms_species_only", "species_both")
    )
#>   body_site bsdb_species_only tms_species_only species_both
#> 1      skin                27              138            8
#> 2    vagina                 4              103            4
#> 3     mouth                55              183          112
#> 4     feces               507              110          154

Enrichment at the genus level:

system.time({
    en_TMS_BSDB_BS_intersect_gn <- vector("list", length(body_sites))
    for (i in seq_along(body_sites)) {
        bk <- bk_TMS_BSDB_BS_intersect_gn[[body_sites[i]]]
        sigL <- bsdb_sigs_BS_gn[[body_sites[i]]]
        res <- map(sigL, ~ microbeSetEnrichment(.x, bk, bp_sigs_gn)) |>
            formatEnSigs()
        en_TMS_BSDB_BS_intersect_gn[[i]] <- res
    }
    en_TMS_BSDB_BS_intersect_gn <- bind_rows(en_TMS_BSDB_BS_intersect_gn)
})
#>    user  system elapsed
#>  74.894   0.040  74.949

Enrichment at the species level:

system.time({
    en_TMS_BSDB_BS_intersect_sp <- vector("list", length(body_sites))
    for (i in seq_along(body_sites)) {
        bk <- bk_TMS_BSDB_BS_intersect_sp[[body_sites[i]]]
        sigL <- bsdb_sigs_BS_sp[[body_sites[i]]]
        res <- map(sigL, ~ microbeSetEnrichment(.x, bk, bp_sigs_sp)) |>
            formatEnSigs()
        en_TMS_BSDB_BS_intersect_sp[[i]] <- res
    }
    en_TMS_BSDB_BS_intersect_sp <- bind_rows(en_TMS_BSDB_BS_intersect_sp)
})
#>    user  system elapsed
#>  44.970   0.012  44.992

en_TMS_BSDB_BS_intersect <- bind_rows(
    en_TMS_BSDB_BS_intersect_gn, en_TMS_BSDB_BS_intersect_sp
)

Combine ORA results

Store all results in a single list:

results <- list(
    TMS_BSDB = en_TMS_BSDB,
    TMS_BSDB_BS = en_TMS_BSDB_BS,
    BSDB = en_BSDB,
    BSDB_BS = en_BSDB_BS,
    TMS_1BSDB_BS = en_TMS_1BSDB_BS,
    TMS_BSDB_intersect = en_TMS_BSDB_intersect,
    TMS_BSDB_BS_intersect = en_TMS_BSDB_BS_intersect
) |>
    map(~ mutate(.x, fdr = p.adjust(p_value))) |>
    map(~ mutate(.x, combination = paste0(
        body_site, "-#-#-", direction, "-#-#-", rank, "-#-#-",
        condition, "-#-#-", sig_name, "-#-#-", bsdb_sig)
    ))

Adjust FDR and filter:

filtered_results <- map(results, ~ filter(.x, fdr < 0.1))
map(filtered_results, dim)
#> $TMS_BSDB
#> [1] 358  17
#>
#> $TMS_BSDB_BS
#> [1] 288  17
#>
#> $BSDB
#> [1] 295  17
#>
#> $BSDB_BS
#> [1] 247  17
#>
#> $TMS_1BSDB_BS
#> [1] 140  17
#>
#> $TMS_BSDB_intersect
#> [1] 76 17
#>
#> $TMS_BSDB_BS_intersect
#> [1] 24 17

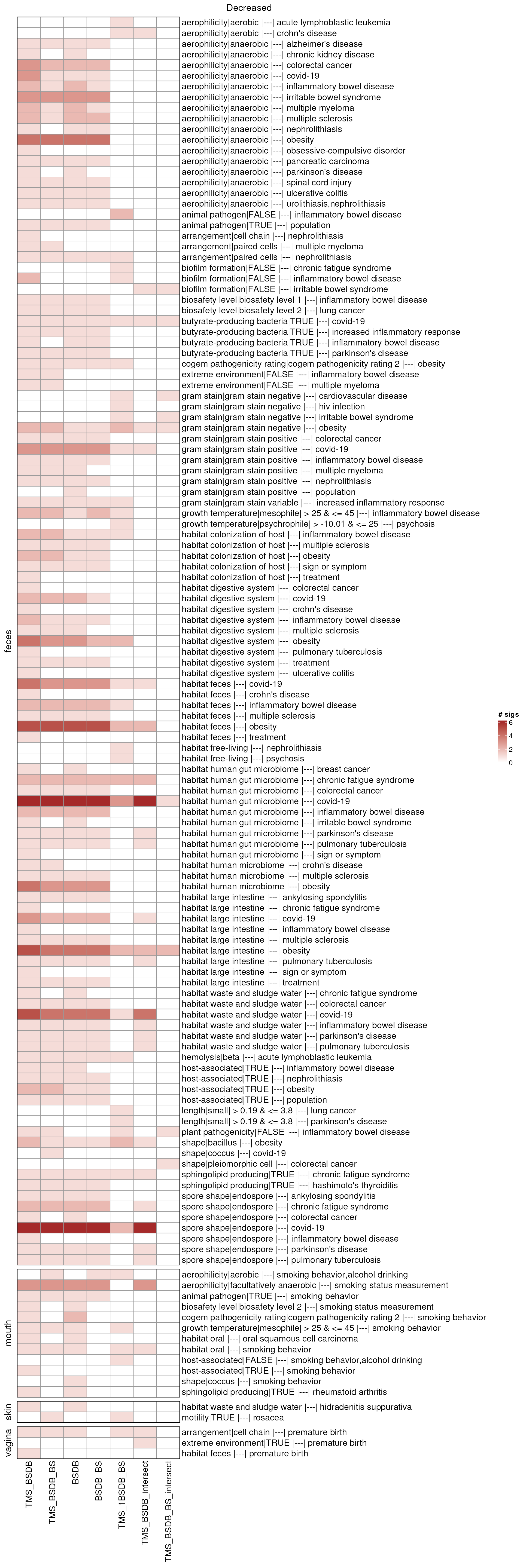

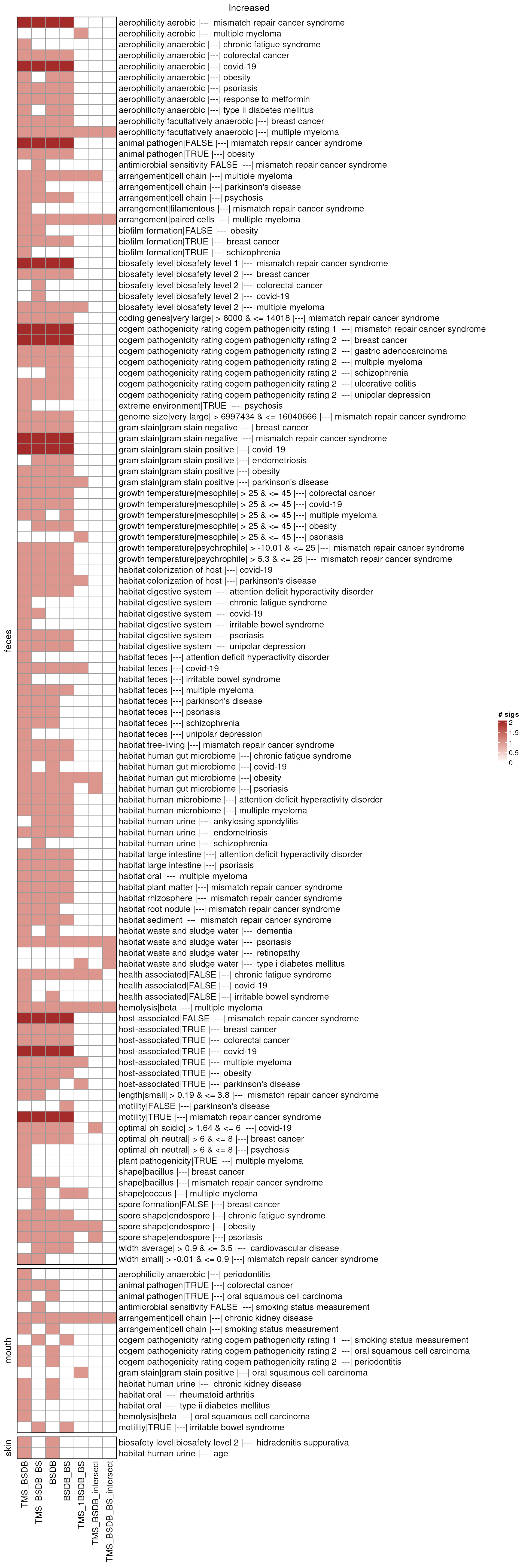

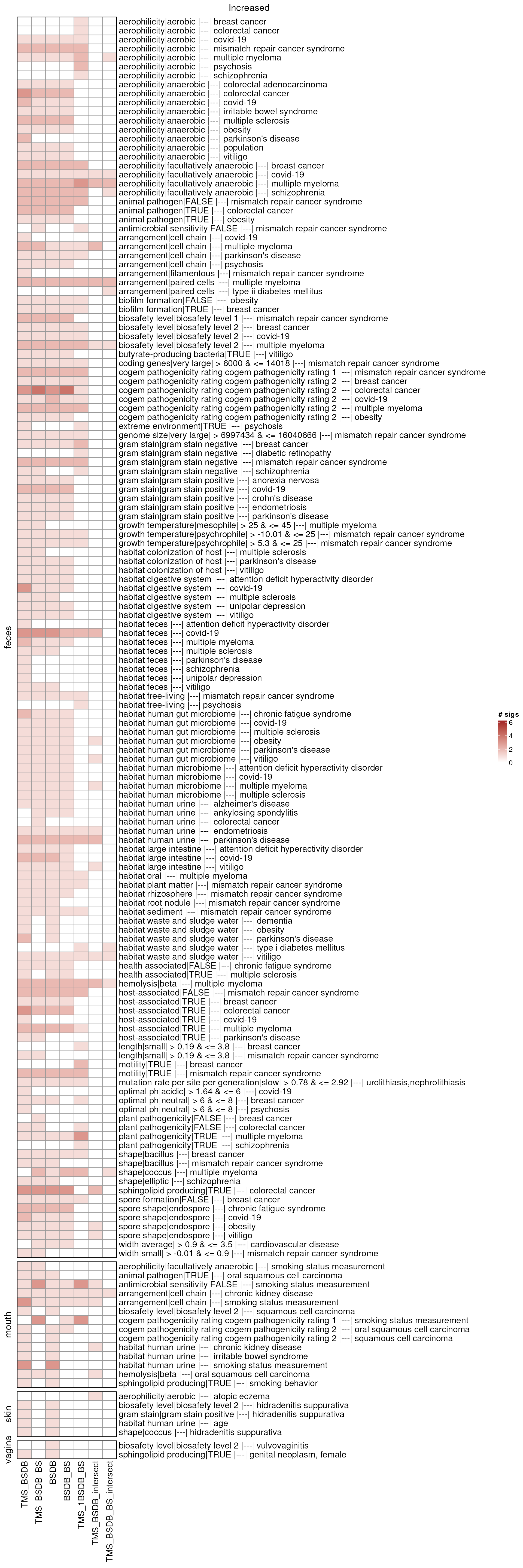

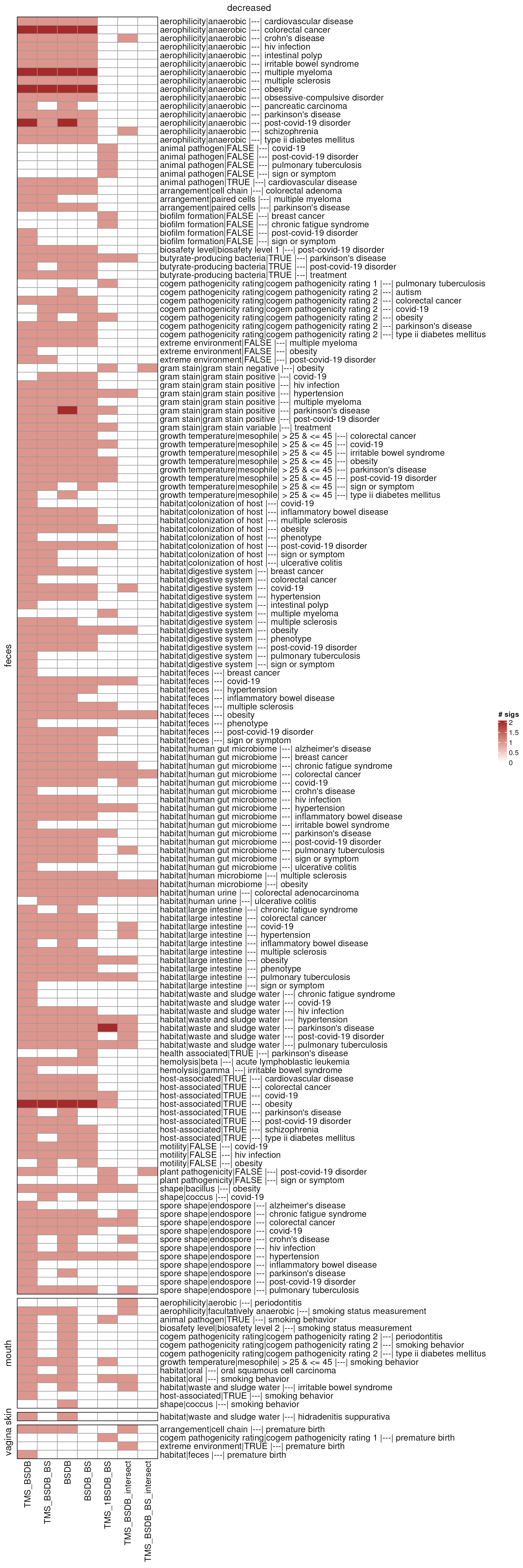

Visualization

Define functions:

createMat <- function(dat, fdr_th = 0.1, dir) {
   dat <- dat |>
       dplyr::filter(
           .data$fdr < fdr_th, .data$direction == dir
       )
   output <- dat |>
       count(
           body_site, direction, condition, sig_name
       ) |>
       {\(y) split(y, y$direction)}() |>
       map(~ split(.x, .x$body_site)) |>
       list_flatten() |>
       discard(~ !nrow(.x)) |>
       bind_rows() |>
       mutate(sig_name = factor(sig_name), condition = factor(condition)) |>
       {\(y) split(y, y$body_site)}() |>
       map(~ {
           mat <- .x |>
               select(-body_site, -direction) |>
               complete(sig_name, condition, fill = list(n = 0)) |>
               pivot_wider(
                   names_from = "condition", values_from = "n", values_fill = 0
               ) |>
               tibble::column_to_rownames(var = "sig_name") |>
               as.matrix()
           select_cols <- which(as.logical(colSums(mat)))
           mat[, select_cols, drop = FALSE]

       })
   output
}

createHt <- function(x, max_count) {
    color_fun <- circlize::colorRamp2(
        breaks = c(0, max_count),
        colors = c("white", "brown")
    )
    lht <- vector("list", length(x))
    for (i in seq_along(x)) {
        xmat <- x[[i]]
        xmat <- xmat[sort(rownames(xmat)),, drop = FALSE]
        xmat <- xmat[,sort(colnames(xmat)), drop = FALSE]
        if (i == length(lht)) {
            lht[[i]] <- Heatmap(
                matrix = xmat,
                col = color_fun,
                show_column_dend = FALSE,
                show_row_dend = FALSE,
                name = "# sigs",
                border = TRUE,
                column_title = names(x)[i],
                row_names_side = "left",
                column_title_rot = 45,
                column_names_rot = 45,
                row_order = rownames(xmat),
                # column_order = colnames(xmat),
                row_names_max_width = max_text_width(
                    rownames(xmat),
                    gp = gpar(fontsize = 12)
                ),
                rect_gp = gpar(col = "gray60", lwd = 1)
            )
        } else {
            lht[[i]] <- Heatmap(
                matrix = xmat,
                col = color_fun,
                show_column_dend = FALSE,
                show_row_dend = FALSE,
                border = TRUE,
                show_heatmap_legend = FALSE,
                column_title = names(x)[i],
                row_names_side = "left",
                column_title_rot = 45,
                column_names_rot = 45,
                row_order = rownames(xmat),
                # column_order = colnames(xmat),
                row_names_max_width = max_text_width(
                    rownames(xmat),
                    gp = gpar(fontsize = 12)
                ),
                rect_gp = gpar(col = "gray60", lwd = 1)
            )
        }
    }
    reduce(lht, `+`)
}

myFun <- function(x) {
    x |>
        as.data.frame() |>
        tibble::rownames_to_column("sig") |>
        pivot_longer(
            names_to = "condition", values_to = "presence", cols = 2:last_col()
        ) |>
        filter(presence > 0) |>
        unite(col = "combination", sep = " |---| ", sig, condition)
}

combinationHt <- function(l, max_count) {
    color_fun <- circlize::colorRamp2(
        breaks = c(0, max_count),
        colors = c("white", "brown")
    )
    xvar <- l |>
        map(~ map(.x, function(x) myFun(x))) |>
        map(~ distinct(bind_rows(.x, .id = "bs"))) |>
        bind_rows(.id = "bk") |>
        mutate(
            bs = factor(bs), combination = factor(combination),
            bk = factor(bk)
        ) |>
        {\(y) split(y, y$bs)}() |>
        map(~select(.x, -bs)) |>
        map(~ {
            .x |>
                complete(combination, bk, fill = list(presence = 0)) |>
                pivot_wider(
                    names_from = "bk", values_from = "presence", values_fill = 0
                ) |>
                tibble::column_to_rownames(var = "combination") |>
                as.matrix()
        }) |>
        map(~ {
            select_row <- which(rowSums(.x) > 0)
            .x[select_row, , drop = FALSE]
        }) |>
        imap(~{
            .x <- .x[sort(rownames(.x)), , drop = FALSE]
            order_of_columns <- c(
                "TMS_BSDB", "TMS_BSDB_BS", "BSDB", "BSDB_BS",
                "TMS_1BSDB_BS", "TMS_BSDB_intersect",
                "TMS_BSDB_BS_intersect"
            )
            Heatmap(
                matrix = .x,
                show_row_names = TRUE,
                show_row_dend = FALSE,
                show_column_dend = FALSE,
                row_dend_reorder = FALSE,
                column_dend_reorder = FALSE,
                row_title = .y,
                col = color_fun,
                name = "# sigs",
                row_order = rownames(.x),
                column_order = order_of_columns,
                row_names_max_width = max_text_width(
                    rownames(.x),
                    gp = gpar(fontsize = 12)
                ),
                rect_gp = gpar(col = "gray60", lwd = 1),
                border = TRUE
            )
        })
    reduce(xvar, ~ .x %v% .y)
}

Create matrices

lmat_down = map(results, ~ createMat(.x, dir = "decreased"))
lmat_up = map(results, ~ createMat(.x, dir = "increased"))

## This variables are used in the functions defined above
maxCountSig <- max(unlist(c(lmat_down, lmat_up)))

## Create heatmaps, but don't display them unless it's required
# l_ht_down <- map(lmat_down, createHt)
# l_ht_up <- map(lmat_up, createHt)

ht_comb_up <- combinationHt(lmat_up, maxCountSig)
draw(ht_comb_up, column_title = "Increased")

ht_comb_down <- combinationHt(lmat_down, maxCountSig)
draw(ht_comb_down, column_title = "Decreased")

ORA with BSDB meta-signatures

Define function for formatting enrichment results with meta-signatures:

formatEnMetSig <- function(l) {
    l |>
        bind_rows(.id = "bsdb_sig") |>
        separate(
            col = "bsdb_sig",
            into = c(
                "body_site", "rank", "direction", "condition"
            ), sep = "-%-%-", remove = TRUE
        ) |>
        mutate(condition = tolower(condition)) |>
        mutate_at(.vars = c("p_value", "fdr"), .funs = ~ round(.x, 3)) |>
        mutate_at(
            .vars = c("odds_ratio", "upper_ci", "lower_ci"),
            .funs = ~ round(.x, 2)
        ) |>
        mutate(sig_name = sub(
            "^bugphyzz:(.*)\\|(genus|species)$", "\\1", sig_name
        )) |>
        {\(y) set_names(y, sub("Set", "BSDB", colnames(y)))}()
}

Background: BSDB

system.time({
    en_meta_BSDB_gn <- map(
        metasigs_gn, ~ microbeSetEnrichment(.x, bk_BSDB_gn, bp_sigs_gn)
    ) |>
        formatEnMetSig()
})
#>    user  system elapsed
#>  37.311   0.008  37.322

system.time({
    en_meta_BSDB_sp <- map(
        metasigs_sp, ~ microbeSetEnrichment(.x, bk_BSDB_sp, bp_sigs_sp)
    ) |>
        formatEnMetSig()
})
#>    user  system elapsed
#>  30.210   0.012  30.227

en_meta_BSDB <- bind_rows(en_meta_BSDB_gn, en_meta_BSDB_sp)

Background: BSDB_BS

genus:

system.time({
    en_meta_BSDB_BS_gn <- vector("list", length(body_sites))
    for (i in seq_along(body_sites)) {
        bk <- bk_BSDB_BS_gn[[body_sites[i]]]
        rx <- paste0(body_sites[i], "-%-%-")
        sigL <- metasigs_gn[grep(rx, names(metasigs_gn))]
        res <- map(sigL, ~ microbeSetEnrichment(.x, bk, bp_sigs_gn)) |>
            formatEnMetSig()
        en_meta_BSDB_BS_gn[[i]] <- res
    }
    en_meta_BSDB_BS_gn <- bind_rows(en_meta_BSDB_BS_gn)
})
#>    user  system elapsed
#>  35.614   0.004  35.622

species:

system.time({
    en_meta_BSDB_BS_sp <- vector("list", length(body_sites))
    for (i in seq_along(body_sites)) {
        bk <- bk_BSDB_BS_sp[[body_sites[i]]]
        rx <- paste0(body_sites[i], "-%-%-")
        sig_list <- metasigs_sp[grep(rx, names(metasigs_sp))]
        res <- map(sig_list, ~ microbeSetEnrichment(.x, bk, bp_sigs_sp)) |>
            formatEnMetSig()
        en_meta_BSDB_BS_sp[[i]] <- res
    }
    en_meta_BSDB_BS_sp <- bind_rows(en_meta_BSDB_BS_sp)
})
#>    user  system elapsed
#>  28.704   0.016  28.723

en_meta_BSDB_BS <- bind_rows(en_meta_BSDB_BS_gn, en_meta_BSDB_BS_sp)

Background: TMS_BSDB

system.time({
    en_meta_TMS_BSDB_gn <- map(
        .x = metasigs_gn,
        .f = ~ microbeSetEnrichment(.x, bk_TMS_BSDB_gn, bp_sigs_gn)
    ) |>
        formatEnMetSig()
})
#>    user  system elapsed
#>  36.597   0.012  36.610

Enrichment at the species level:

system.time({
    en_meta_TMS_BSDB_sp <- map(
        .x = metasigs_sp,
        .f = ~ microbeSetEnrichment(.x, bk_TMS_BSDB_sp, bp_sigs_sp)
        ) |>
        formatEnMetSig()
})
#>    user  system elapsed
#>  31.049   0.012  31.063

en_meta_TMS_BSDB <- bind_rows(en_meta_TMS_BSDB_gn, en_meta_TMS_BSDB_sp)

Background: TMS_BSDB_BS

system.time({
    en_meta_TMS_BSDB_BS_gn <- vector("list", length(body_sites))
    for (i in seq_along(body_sites)) {
        bk <- bk_TMS_BSDB_BS_gn[[body_sites[i]]]
        rx <- paste0(body_sites[i], "-%-%-")
        sig_list <- metasigs_gn[grep(rx, names(metasigs_gn))]
        res <- map(sig_list, ~ microbeSetEnrichment(.x, bk, bp_sigs_gn)) |>
            formatEnMetSig()
        en_meta_TMS_BSDB_BS_gn[[i]] <- res
    }
    en_meta_TMS_BSDB_BS_gn <- bind_rows(en_meta_TMS_BSDB_BS_gn)
})
#>    user  system elapsed
#>  35.831   0.024  35.857

system.time({
    en_meta_TMS_BSDB_BS_sp <- vector("list", length(body_sites))
    for (i in seq_along(body_sites)) {
        bk <- bk_TMS_BSDB_BS_sp[[body_sites[i]]]
        rx <- paste0(body_sites[i], "-%-%-")
        sig_list <- metasigs_sp[grep(rx, names(metasigs_sp))]
        res <- map(sig_list, ~ microbeSetEnrichment(.x, bk, bp_sigs_sp)) |>
            formatEnMetSig()
        en_meta_TMS_BSDB_BS_sp[[i]] <- res
    }
    en_meta_TMS_BSDB_BS_sp <- bind_rows(en_meta_TMS_BSDB_BS_sp)
})
#>    user  system elapsed
#>  29.258   0.008  29.269

en_meta_TMS_BSDB_BS <- bind_rows(
    en_meta_TMS_BSDB_BS_gn, en_meta_TMS_BSDB_BS_sp
    )

Background: TMS_BSDB_intersect

genus:

system.time({
    en_meta_TMS_BSDB_intersect_gn <- map(
        metasigs_gn,
        ~ microbeSetEnrichment(.x, bk_TMS_BSDB_intersect_gn, bp_sigs_gn)
        ) |>
        formatEnMetSig()
})
#>    user  system elapsed
#>  34.813   0.012  34.826

species:

system.time({
    en_meta_TMS_BSDB_intersect_sp <- map(
        metasigs_sp,
        ~ microbeSetEnrichment(.x, bk_TMS_BSDB_intersect_sp, bp_sigs_sp)
        ) |>
        formatEnMetSig()
})
#>    user  system elapsed
#>  27.751   0.011  27.765

en_meta_TMS_BSDB_intersect <- bind_rows(
    en_meta_TMS_BSDB_intersect_gn, en_meta_TMS_BSDB_intersect_sp
    )

Bacgkround: TMS_BSDB_BS_intersect

system.time({
    en_meta_TMS_BSDB_BS_intersect_gn <- vector("list", length(body_sites))
    for (i in seq_along(body_sites)) {
        bk <- bk_TMS_BSDB_BS_intersect_gn[[body_sites[i]]]
        rx <- paste0(body_sites[i], "-%-%-")
        sig_list <- metasigs_gn[grep(rx, names(metasigs_gn))]
        res <- map(sig_list, ~ microbeSetEnrichment(.x, bk, bp_sigs_gn)) |>
            formatEnMetSig()
        en_meta_TMS_BSDB_BS_intersect_gn[[i]] <- res
    }
    en_meta_TMS_BSDB_BS_intersect_gn <- bind_rows(
        en_meta_TMS_BSDB_BS_intersect_gn
    )
})
#>    user  system elapsed
#>  33.930   0.020  33.955

system.time({
    en_meta_TMS_BSDB_BS_intersect_sp <- vector("list", length(body_sites))
    for (i in seq_along(body_sites)) {
        bk <- bk_TMS_BSDB_BS_intersect_sp[[body_sites[i]]]
        rx <- paste0(body_sites[i], "-%-%-")
        sig_list <- metasigs_sp[grep(rx, names(metasigs_sp))]
        res <- map(sig_list, ~ microbeSetEnrichment(.x, bk, bp_sigs_sp)) |>
            formatEnMetSig()
        en_meta_TMS_BSDB_BS_intersect_sp[[i]] <- res
    }
    en_meta_TMS_BSDB_BS_intersect_sp <- bind_rows(
        en_meta_TMS_BSDB_BS_intersect_sp
    )
})
#>    user  system elapsed
#>  26.841   0.004  26.847

en_meta_TMS_BSDB_BS_intersect <- bind_rows(
    en_meta_TMS_BSDB_BS_intersect_gn, en_meta_TMS_BSDB_BS_intersect_sp
    )

Background: TMS_1BSDB_BS

metasigs <- c(metasigs_gn, metasigs_sp)
bk_meta_TMS_1BSDB_BS <- vector("list", length(metasigs))
for (i in seq_along(bk_meta_TMS_1BSDB_BS)) {
    sig_name <- names(metasigs)[i]
    names(bk_TMS_1BSDB_BS)[i] <- sig_name
    bodysite_name <- sub("^(\\w+)-%-%-(species|genus)-%-%-.*$", "\\1", sig_name)
    rank_name <- sub("^(\\w+)-%-%-(species|genus)-%-%-.*$", "\\2", sig_name)
    tms_sig_name <- paste0(bodysite_name, "_", rank_name)
    bk_TMS_1BSDB_BS[[i]] <- unique(
        c(as.character(bsdb_sigs[[i]]), as.character(tms_sigs[[tms_sig_name]]))
    )
}

Enrichment at the genus level:

system.time({
    bk_TMS_1BSDB_BS_gn <- bk_TMS_1BSDB_BS[names(metasigs_gn)]
    en_meta_TMS_1BSDB_BS_gn <- map2(metasigs_gn, bk_TMS_1BSDB_BS_gn, ~ {
        microbeSetEnrichment(set = .x, reference = .y, sigs = bp_sigs_gn)
    }) |>
        formatEnMetSig()
})
#>    user  system elapsed
#>  34.180   0.020  34.202

Enrichment at the species level:

system.time({
    bk_TMS_1BSDB_BS_sp <- bk_TMS_1BSDB_BS[names(metasigs_sp)]
    en_meta_TMS_1BSDB_BS_sp <- map2(metasigs_sp, bk_TMS_1BSDB_BS_sp, ~ {
        microbeSetEnrichment(set = .x, reference = .y, sigs = bp_sigs_sp)
    }) |>
        formatEnMetSig()
})
#>    user  system elapsed
#>  27.522   0.012  27.536

en_meta_TMS_1BSDB_BS <- bind_rows(
    en_meta_TMS_1BSDB_BS_gn, en_meta_TMS_1BSDB_BS_sp
    )

Combine ORA results

meta_results <- list(
    BSDB = en_meta_BSDB,
    BSDB_BS = en_meta_BSDB_BS,
    TMS_BSDB = en_meta_TMS_BSDB,
    TMS_BSDB_BS = en_meta_TMS_BSDB_BS,
    TMS_BSDB_intersect = en_meta_TMS_BSDB_intersect,
    TMS_BSDB_BS_intersect = en_meta_TMS_BSDB_BS_intersect,
    TMS_1BSDB_BS = en_meta_TMS_1BSDB_BS
) |>
    map(~ mutate(.x, fdr = p.adjust(p_value))) |>
    map(~ mutate(.x, combination = paste0(
        body_site, "-#-#-", direction, "-#-#-", rank, "-#-#-",
        condition, "-#-#-", sig_name)
    ))

Adjust p-value and filter by FDR:

filtered_meta_results <- map(meta_results, ~ filter(.x, fdr < 0.1))
map(filtered_meta_results, dim)
#> $BSDB
#> [1] 272  16
#>
#> $BSDB_BS
#> [1] 226  16
#>
#> $TMS_BSDB
#> [1] 312  16
#>
#> $TMS_BSDB_BS
#> [1] 248  16
#>
#> $TMS_BSDB_intersect
#> [1] 53 16
#>
#> $TMS_BSDB_BS_intersect
#> [1] 14 16
#>
#> $TMS_1BSDB_BS
#> [1] 80 16

Visualization

meta_lmat_down = map(filtered_meta_results, ~ createMat(.x, dir = "decreased"))
meta_lmat_up = map(filtered_meta_results, ~ createMat(.x, dir = "increased"))
maxCountMeta <- max(unlist(c(meta_lmat_down, meta_lmat_up)))

meta_ht_comb_up <- combinationHt(meta_lmat_up, maxCountMeta)
draw(meta_ht_comb_up, column_title = "Increased")

meta_ht_comb_down <- combinationHt(meta_lmat_down, maxCountMeta)
draw(meta_ht_comb_down, column_title = "decreased")

ORA with BSDB unique meta-signatures

Background: BSDB

system.time({
    en_umeta_BSDB_gn <- map(
        umetasigs_gn, ~ microbeSetEnrichment(.x, bk_BSDB_gn, bp_sigs_gn)
    ) |>
        formatEnMetSig()
})
#>    user  system elapsed
#>  35.956   0.020  35.978

system.time({
    en_umeta_BSDB_sp <- map(
        umetasigs_sp, ~ microbeSetEnrichment(.x, bk_BSDB_sp, bp_sigs_sp)
    ) |>
        formatEnMetSig()
})
#>    user  system elapsed
#>  29.768   0.004  29.773

en_umeta_BSDB <- bind_rows(en_umeta_BSDB_gn, en_umeta_BSDB_sp)

Background: BSDB_BS

genus:

system.time({
    en_umeta_BSDB_BS_gn <- vector("list", length(body_sites))
    for (i in seq_along(body_sites)) {
        bk <- bk_BSDB_BS_gn[[body_sites[i]]]
        rx <- paste0(body_sites[i], "-%-%-")
        sig_list <- umetasigs_gn[grep(rx, names(umetasigs_gn))]
        res <- map(sig_list, ~ microbeSetEnrichment(.x, bk, bp_sigs_gn)) |>
            formatEnMetSig()
        en_umeta_BSDB_BS_gn[[i]] <- res
    }
    en_umeta_BSDB_BS_gn <- bind_rows(en_umeta_BSDB_BS_gn)
})
#>    user  system elapsed
#>  35.219   0.028  35.249

species:

system.time({
    en_umeta_BSDB_BS_sp <- vector("list", length(body_sites))
    for (i in seq_along(body_sites)) {
        bk <- bk_BSDB_BS_sp[[body_sites[i]]]
        rx <- paste0(body_sites[i], "-%-%-")
        sig_list <- umetasigs_sp[grep(rx, names(umetasigs_sp))]
        res <- map(sig_list, ~ microbeSetEnrichment(.x, bk, bp_sigs_sp)) |>
            formatEnMetSig()
        en_umeta_BSDB_BS_sp[[i]] <- res
    }
    en_umeta_BSDB_BS_sp <- bind_rows(en_umeta_BSDB_BS_sp)
})
#>    user  system elapsed
#>  28.534   0.016  28.550

en_umeta_BSDB_BS <- bind_rows(en_umeta_BSDB_BS_gn, en_umeta_BSDB_BS_sp)

Background: TMS_BSDB

system.time({
    en_umeta_TMS_BSDB_gn <- map(
        .x = umetasigs_gn,
        .f = ~ microbeSetEnrichment(.x, bk_TMS_BSDB_gn, bp_sigs_gn)
    ) |>
        formatEnMetSig()
})
#>    user  system elapsed
#>  36.224   0.012  36.238

Enrichment at the species level:

system.time({
    en_umeta_TMS_BSDB_sp <- map(
        .x = umetasigs_sp,
        .f = ~ microbeSetEnrichment(.x, bk_TMS_BSDB_sp, bp_sigs_sp)
        ) |>
        formatEnMetSig()
})
#>    user  system elapsed
#>  30.868   0.016  30.885

en_umeta_TMS_BSDB <- bind_rows(en_umeta_TMS_BSDB_gn, en_umeta_TMS_BSDB_sp)

Background: TMS_BSDB_BS

system.time({
    en_umeta_TMS_BSDB_BS_gn <- vector("list", length(body_sites))
    for (i in seq_along(body_sites)) {
        bk <- bk_TMS_BSDB_BS_gn[[body_sites[i]]]
        rx <- paste0(body_sites[i], "-%-%-")
        sig_list <- umetasigs_gn[grep(rx, names(umetasigs_gn))]
        res <- map(sig_list, ~ microbeSetEnrichment(.x, bk, bp_sigs_gn)) |>
            formatEnMetSig()
        en_umeta_TMS_BSDB_BS_gn[[i]] <- res
    }
    en_umeta_TMS_BSDB_BS_gn <- bind_rows(en_umeta_TMS_BSDB_BS_gn)
})
#>    user  system elapsed
#>  35.481   0.016  35.498

system.time({
    en_umeta_TMS_BSDB_BS_sp <- vector("list", length(body_sites))
    for (i in seq_along(body_sites)) {
        bk <- bk_TMS_BSDB_BS_sp[[body_sites[i]]]
        rx <- paste0(body_sites[i], "-%-%-")
        sig_list <- umetasigs_sp[grep(rx, names(umetasigs_sp))]
        res <- map(sig_list, ~ microbeSetEnrichment(.x, bk, bp_sigs_sp)) |>
            formatEnMetSig()
        en_umeta_TMS_BSDB_BS_sp[[i]] <- res
    }
    en_umeta_TMS_BSDB_BS_sp <- bind_rows(en_umeta_TMS_BSDB_BS_sp)
})
#>    user  system elapsed
#>  29.072   0.000  29.072

en_umeta_TMS_BSDB_BS <- bind_rows(
    en_umeta_TMS_BSDB_BS_gn, en_umeta_TMS_BSDB_BS_sp
    )

Background: TMS_BSDB_intersect

genus:

system.time({
    en_umeta_TMS_BSDB_intersect_gn <- map(
        umetasigs_gn,
        ~ microbeSetEnrichment(.x, bk_TMS_BSDB_intersect_gn, bp_sigs_gn)
        ) |>
        formatEnMetSig()
})
#>    user  system elapsed
#>  34.521   0.016  34.540

species:

system.time({
    en_umeta_TMS_BSDB_intersect_sp <- map(
        umetasigs_sp,
        ~ microbeSetEnrichment(.x, bk_TMS_BSDB_intersect_sp, bp_sigs_sp)
        ) |>
        formatEnMetSig()
})
#>    user  system elapsed
#>  27.726   0.016  27.743

en_umeta_TMS_BSDB_intersect <- bind_rows(
    en_umeta_TMS_BSDB_intersect_gn, en_umeta_TMS_BSDB_intersect_sp
    )

Bacgkround: TMS_BSDB_BS_intersect

system.time({
    en_umeta_TMS_BSDB_BS_intersect_gn <- vector("list", length(body_sites))
    for (i in seq_along(body_sites)) {
        bk <- bk_TMS_BSDB_BS_intersect_gn[[body_sites[i]]]
        rx <- paste0(body_sites[i], "-%-%-")
        sig_list <- umetasigs_gn[grep(rx, names(umetasigs_gn))]
        res <- map(sig_list, ~ microbeSetEnrichment(.x, bk, bp_sigs_gn)) |>
            formatEnMetSig()
        en_umeta_TMS_BSDB_BS_intersect_gn[[i]] <- res
    }
    en_umeta_TMS_BSDB_BS_intersect_gn <- bind_rows(
        en_umeta_TMS_BSDB_BS_intersect_gn
    )
})
#>    user  system elapsed
#>  33.783   0.012  33.796

system.time({
    en_umeta_TMS_BSDB_BS_intersect_sp <- vector("list", length(body_sites))
    for (i in seq_along(body_sites)) {
        bk <- bk_TMS_BSDB_BS_intersect_sp[[body_sites[i]]]
        rx <- paste0(body_sites[i], "-%-%-")
        sig_list <- umetasigs_sp[grep(rx, names(umetasigs_sp))]
        res <- map(sig_list, ~ microbeSetEnrichment(.x, bk, bp_sigs_sp)) |>
            formatEnMetSig()
        en_umeta_TMS_BSDB_BS_intersect_sp[[i]] <- res
    }
    en_umeta_TMS_BSDB_BS_intersect_sp <- bind_rows(
        en_umeta_TMS_BSDB_BS_intersect_sp
    )
})
#>    user  system elapsed
#>  27.144   0.004  27.149

en_umeta_TMS_BSDB_BS_intersect <- bind_rows(
    en_umeta_TMS_BSDB_BS_intersect_gn, en_umeta_TMS_BSDB_BS_intersect_sp
    )

Background: TMS_1BSDB_BS

umetasigs <- c(umetasigs_gn, umetasigs_sp)
bk_umeta_TMS_1BSDB_BS <- vector("list", length(umetasigs))
for (i in seq_along(bk_umeta_TMS_1BSDB_BS)) {
    sig_name <- names(umetasigs)[i]
    names(bk_umeta_TMS_1BSDB_BS)[i] <- sig_name
    bodysite_name <- sub("^(\\w+)-%-%-(species|genus)-%-%-.*$", "\\1", sig_name)
    rank_name <- sub("^(\\w+)-%-%-(species|genus)-%-%-.*$", "\\2", sig_name)
    tms_sig_name <- paste0(bodysite_name, "_", rank_name)
    bk_umeta_TMS_1BSDB_BS[[i]] <- unique(
        c(as.character(bsdb_sigs[[i]]), as.character(tms_sigs[[tms_sig_name]]))
    )
}

Enrichment at the genus level:

system.time({
    bk_umeta_TMS_1BSDB_BS_gn <- bk_umeta_TMS_1BSDB_BS[names(umetasigs_gn)]
    en_umeta_TMS_1BSDB_BS_gn <- map2(umetasigs_gn, bk_umeta_TMS_1BSDB_BS_gn, ~ {
        microbeSetEnrichment(set = .x, reference = .y, sigs = bp_sigs_gn)
    }) |>
        formatEnMetSig()
})
#>    user  system elapsed
#>  34.204   0.024  34.230

Enrichment at the species level:

system.time({
    bk_umeta_TMS_1BSDB_BS_sp <- bk_umeta_TMS_1BSDB_BS[names(umetasigs_sp)]
    en_umeta_TMS_1BSDB_BS_sp <- map2(umetasigs_sp, bk_umeta_TMS_1BSDB_BS_sp, ~ {
        microbeSetEnrichment(set = .x, reference = .y, sigs = bp_sigs_sp)
    }) |>
        formatEnMetSig()
})
#>    user  system elapsed
#>  27.760   0.004  27.765

en_umeta_TMS_1BSDB_BS <- bind_rows(
    en_umeta_TMS_1BSDB_BS_gn, en_umeta_TMS_1BSDB_BS_sp
    )

Combine ORA results

umeta_results <- list(
    BSDB = en_umeta_BSDB,
    BSDB_BS = en_umeta_BSDB_BS,
    TMS_BSDB = en_umeta_TMS_BSDB,
    TMS_BSDB_BS = en_umeta_TMS_BSDB_BS,
    TMS_BSDB_intersect = en_umeta_TMS_BSDB_intersect,
    TMS_BSDB_BS_intersect = en_umeta_TMS_BSDB_BS_intersect,
    TMS_1BSDB_BS = en_umeta_TMS_1BSDB_BS
) |>
    map(~ mutate(.x, fdr = p.adjust(p_value))) |>
    map(~ mutate(.x, combination = paste0(
        body_site, "-#-#-", direction, "-#-#-", rank, "-#-#-",
        condition, "-#-#-", sig_name)
    ))

Filter results

filtered_umeta_results <- map(umeta_results, ~ filter(.x, fdr < 0.1))
map(filtered_umeta_results, dim)
#> $BSDB
#> [1] 202  16
#>
#> $BSDB_BS
#> [1] 174  16
#>
#> $TMS_BSDB
#> [1] 243  16
#>
#> $TMS_BSDB_BS
#> [1] 196  16
#>
#> $TMS_BSDB_intersect
#> [1] 32 16
#>
#> $TMS_BSDB_BS_intersect
#> [1]  9 16
#>
#> $TMS_1BSDB_BS
#> [1] 63 16

Visualization

umeta_lmat_down = map(
    filtered_umeta_results, ~ createMat(.x, dir = "decreased")
)
umeta_lmat_up = map(
    filtered_umeta_results, ~ createMat(.x, dir = "increased")
)
maxCountumeta <- max(unlist(c(umeta_lmat_down, umeta_lmat_up)))

umeta_ht_comb_up <- combinationHt(umeta_lmat_up, maxCountumeta)
draw(umeta_ht_comb_up, column_title = "Increased")

umeta_ht_comb_down <- combinationHt(umeta_lmat_down, maxCountumeta)
draw(umeta_ht_comb_down, column_title = "decreased")

Tables

Results of enrichment using signatures

resDF <- filtered_results |>
    bind_rows(.id = "background")
myDataTable(resDF)

Results of enrichment using meta-signatures

metaResDF <- filtered_meta_results |>
    bind_rows(.id = "background")
myDataTable(metaResDF)

Results of enrichment using unique meta-signatures

umetaResDF <- filtered_umeta_results |>
    bind_rows(.id = "background")
myDataTable(umetaResDF)

Session info

sessioninfo::session_info()
#> ─ Session info ───────────────────────────────────────────────────────────────
#>  setting  value
#>  version  R version 4.3.3 (2024-02-29)
#>  os       Ubuntu 22.04.4 LTS
#>  system   x86_64, linux-gnu
#>  ui       X11
#>  language en
#>  collate  en_US.UTF-8
#>  ctype    en_US.UTF-8
#>  tz       Etc/UTC
#>  date     2024-04-11
#>  pandoc   3.1.1 @ /usr/local/bin/ (via rmarkdown)
#>
#> ─ Packages ───────────────────────────────────────────────────────────────────
#>  package          * version  date (UTC) lib source
#>  BiocFileCache      2.10.2   2024-03-27 [1] Bioconductor 3.18 (R 4.3.2)
#>  BiocGenerics       0.48.1   2023-11-01 [1] Bioconductor
#>  bit                4.0.5    2022-11-15 [1] RSPM (R 4.3.0)
#>  bit64              4.0.5    2020-08-30 [1] RSPM (R 4.3.0)
#>  blob               1.2.4    2023-03-17 [1] RSPM (R 4.3.0)
#>  bslib              0.7.0    2024-03-29 [1] RSPM (R 4.3.0)
#>  bugphyzz         * 0.99.0   2024-04-11 [1] Github (waldronlab/bugphyzz@08661bb)
#>  bugphyzzAnalyses * 0.1.1    2024-04-11 [1] local
#>  bugsigdbr        * 1.8.4    2024-02-21 [1] Bioconductor 3.18 (R 4.3.2)
#>  cachem             1.0.8    2023-05-01 [1] RSPM (R 4.3.0)
#>  Cairo              1.6-2    2023-11-28 [1] RSPM (R 4.3.0)
#>  circlize           0.4.16   2024-02-20 [1] RSPM (R 4.3.0)
#>  cli                3.6.2    2023-12-11 [1] RSPM (R 4.3.0)
#>  clue               0.3-65   2023-09-23 [1] RSPM (R 4.3.0)
#>  cluster            2.1.6    2023-12-01 [2] CRAN (R 4.3.3)
#>  codetools          0.2-20   2024-03-31 [2] RSPM (R 4.3.0)
#>  colorspace         2.1-0    2023-01-23 [1] RSPM (R 4.3.0)
#>  ComplexHeatmap   * 2.18.0   2023-10-24 [1] Bioconductor
#>  crayon             1.5.2    2022-09-29 [1] RSPM (R 4.3.0)
#>  crosstalk          1.2.1    2023-11-23 [1] RSPM (R 4.3.0)
#>  curl               5.2.1    2024-03-01 [1] RSPM (R 4.3.0)
#>  DBI                1.2.2    2024-02-16 [1] RSPM (R 4.3.0)
#>  dbplyr             2.5.0    2024-03-19 [1] RSPM (R 4.3.0)
#>  desc               1.4.3    2023-12-10 [1] RSPM (R 4.3.0)
#>  digest             0.6.35   2024-03-11 [1] RSPM (R 4.3.0)
#>  doParallel         1.0.17   2022-02-07 [1] RSPM (R 4.3.0)
#>  dplyr            * 1.1.4    2023-11-17 [1] RSPM (R 4.3.0)
#>  DT                 0.33     2024-04-04 [1] RSPM (R 4.3.0)
#>  epitools           0.5-10.1 2020-03-22 [1] RSPM (R 4.3.0)
#>  evaluate           0.23     2023-11-01 [1] RSPM (R 4.3.0)
#>  fansi              1.0.6    2023-12-08 [1] RSPM (R 4.3.0)
#>  fastmap            1.1.1    2023-02-24 [1] RSPM (R 4.3.0)
#>  filelock           1.0.3    2023-12-11 [1] RSPM (R 4.3.0)
#>  foreach            1.5.2    2022-02-02 [1] RSPM (R 4.3.0)
#>  fs                 1.6.3    2023-07-20 [1] RSPM (R 4.3.0)
#>  generics           0.1.3    2022-07-05 [1] RSPM (R 4.3.0)
#>  GetoptLong         1.0.5    2020-12-15 [1] RSPM (R 4.3.0)
#>  ggplot2          * 3.5.0    2024-02-23 [1] RSPM (R 4.3.0)
#>  GlobalOptions      0.1.2    2020-06-10 [1] RSPM (R 4.3.0)
#>  glue               1.7.0    2024-01-09 [1] RSPM (R 4.3.0)
#>  gridExtra        * 2.3      2017-09-09 [1] RSPM (R 4.3.0)
#>  gtable             0.3.4    2023-08-21 [1] RSPM (R 4.3.0)
#>  highr              0.10     2022-12-22 [1] RSPM (R 4.3.0)
#>  hms                1.1.3    2023-03-21 [1] RSPM (R 4.3.0)
#>  htmltools          0.5.8.1  2024-04-04 [1] RSPM (R 4.3.0)
#>  htmlwidgets        1.6.4    2023-12-06 [1] RSPM (R 4.3.0)
#>  httr               1.4.7    2023-08-15 [1] RSPM (R 4.3.0)
#>  IRanges            2.36.0   2023-10-24 [1] Bioconductor
#>  iterators          1.0.14   2022-02-05 [1] RSPM (R 4.3.0)
#>  jquerylib          0.1.4    2021-04-26 [1] RSPM (R 4.3.0)
#>  jsonlite           1.8.8    2023-12-04 [1] RSPM (R 4.3.0)
#>  knitr              1.46     2024-04-06 [1] RSPM (R 4.3.0)
#>  lifecycle          1.0.4    2023-11-07 [1] RSPM (R 4.3.0)
#>  magrittr           2.0.3    2022-03-30 [1] RSPM (R 4.3.0)
#>  matrixStats        1.2.0    2023-12-11 [1] RSPM (R 4.3.0)
#>  memoise            2.0.1    2021-11-26 [1] RSPM (R 4.3.0)
#>  munsell            0.5.1    2024-04-01 [1] RSPM (R 4.3.0)
#>  ontologyIndex      2.12     2024-02-27 [1] RSPM (R 4.3.0)
#>  pillar             1.9.0    2023-03-22 [1] RSPM (R 4.3.0)
#>  pkgconfig          2.0.3    2019-09-22 [1] RSPM (R 4.3.0)
#>  pkgdown            2.0.8    2024-04-10 [1] RSPM (R 4.3.0)
#>  png                0.1-8    2022-11-29 [1] RSPM (R 4.3.0)
#>  purrr            * 1.0.2    2023-08-10 [1] RSPM (R 4.3.0)
#>  R6                 2.5.1    2021-08-19 [1] RSPM (R 4.3.0)
#>  ragg               1.3.0    2024-03-13 [1] RSPM (R 4.3.0)
#>  RColorBrewer       1.1-3    2022-04-03 [1] RSPM (R 4.3.0)
#>  readr              2.1.5    2024-01-10 [1] RSPM (R 4.3.0)
#>  rjson              0.2.21   2022-01-09 [1] RSPM (R 4.3.0)
#>  rlang              1.1.3    2024-01-10 [1] RSPM (R 4.3.0)
#>  rmarkdown          2.26     2024-03-05 [1] RSPM (R 4.3.0)
#>  RSQLite            2.3.6    2024-03-31 [1] RSPM (R 4.3.0)
#>  S4Vectors          0.40.2   2023-11-23 [1] Bioconductor 3.18 (R 4.3.2)
#>  sass               0.4.9    2024-03-15 [1] RSPM (R 4.3.0)
#>  scales             1.3.0    2023-11-28 [1] RSPM (R 4.3.0)
#>  sessioninfo        1.2.2    2021-12-06 [1] RSPM (R 4.3.0)
#>  shape              1.4.6.1  2024-02-23 [1] RSPM (R 4.3.0)
#>  stringi            1.8.3    2023-12-11 [1] RSPM (R 4.3.0)
#>  stringr            1.5.1    2023-11-14 [1] RSPM (R 4.3.0)
#>  systemfonts        1.0.6    2024-03-07 [1] RSPM (R 4.3.0)
#>  textshaping        0.3.7    2023-10-09 [1] RSPM (R 4.3.0)
#>  tibble             3.2.1    2023-03-20 [1] RSPM (R 4.3.0)
#>  tidyr            * 1.3.1    2024-01-24 [1] RSPM (R 4.3.0)
#>  tidyselect         1.2.1    2024-03-11 [1] RSPM (R 4.3.0)
#>  tzdb               0.4.0    2023-05-12 [1] RSPM (R 4.3.0)
#>  utf8               1.2.4    2023-10-22 [1] RSPM (R 4.3.0)
#>  vctrs              0.6.5    2023-12-01 [1] RSPM (R 4.3.0)
#>  vroom              1.6.5    2023-12-05 [1] RSPM (R 4.3.0)
#>  withr              3.0.0    2024-01-16 [1] RSPM (R 4.3.0)
#>  xfun               0.43     2024-03-25 [1] RSPM (R 4.3.0)
#>  yaml               2.3.8    2023-12-11 [1] RSPM (R 4.3.0)
#>
#>  [1] /usr/local/lib/R/site-library
#>  [2] /usr/local/lib/R/library
#>
#> ──────────────────────────────────────────────────────────────────────────────
